Features:

All Adjustments, Wiring Connections and Pilot Outlet are Accessible from Top of Control
Clearly Marked, Keyed Terminal Block Allows Quick Attachment of Wires and Ip/Dsi/Hsi Jumper
Internal Inlet Screen Blocks Contaminants in Gas Line from Entering Valve

Specifications:

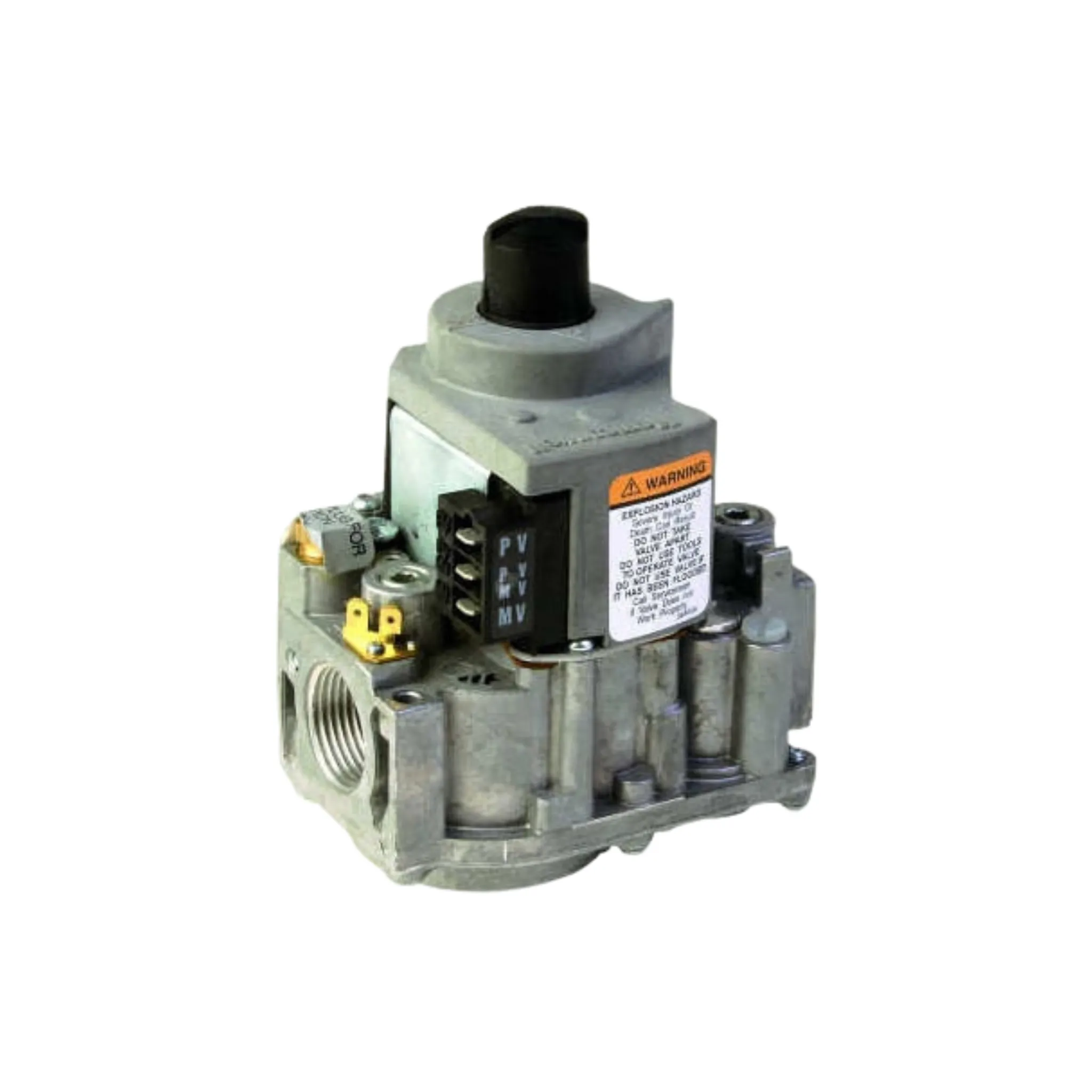

Manufacturer: Honeywell
Manufacturer Part Number: VR8245M2530
Product Type: Gas Valve
Port Connection: 1/2" Compression x 1/2" Compression
Input Supply Rating: 24 VAC @ 50/60 Hz
Temperature Rating: -40 to 175 Degrees F
Pressure Rating: 1/2 PSI
Mounting Details: 0 to 90 Degree in any Direction from Upright Position of Gas Control Knob, Including Vertically
Media Handled: Gas
Pressure Regulator Setting: 3.5" WC
Pressure Tapping Size: 1/8" Threaded with Plug
Flow Capacity: 20 to 200 CFH
Electrical Connection: 1/4" Quick Connect Male Terminal
Dimensions: 4.9" x 5.85" x 3.25"
Weight: 1.98 lb.
Includes: (1) 1/2 Inch x 3/8 Inch Reducer Bushing, Natural to Liquid Propane Conversion Kit, Standard Opening, Manual Valve, (2) Automatic Operator, Pressure Regulator, Pilot Adjustment, Pilot Plug and Ignition Adapter, Low Voltage
