Features:

All Adjustments, Wiring Connections and Pilot Outlet are Accessible from Top of Control
Clearly Marked, Keyed Terminal Block Allows Quick Attachment of Wires and Ip/Dsi/Hsi Jumper
Internal Inlet Screen Blocks Contaminants in Gas Line from Entering Valve

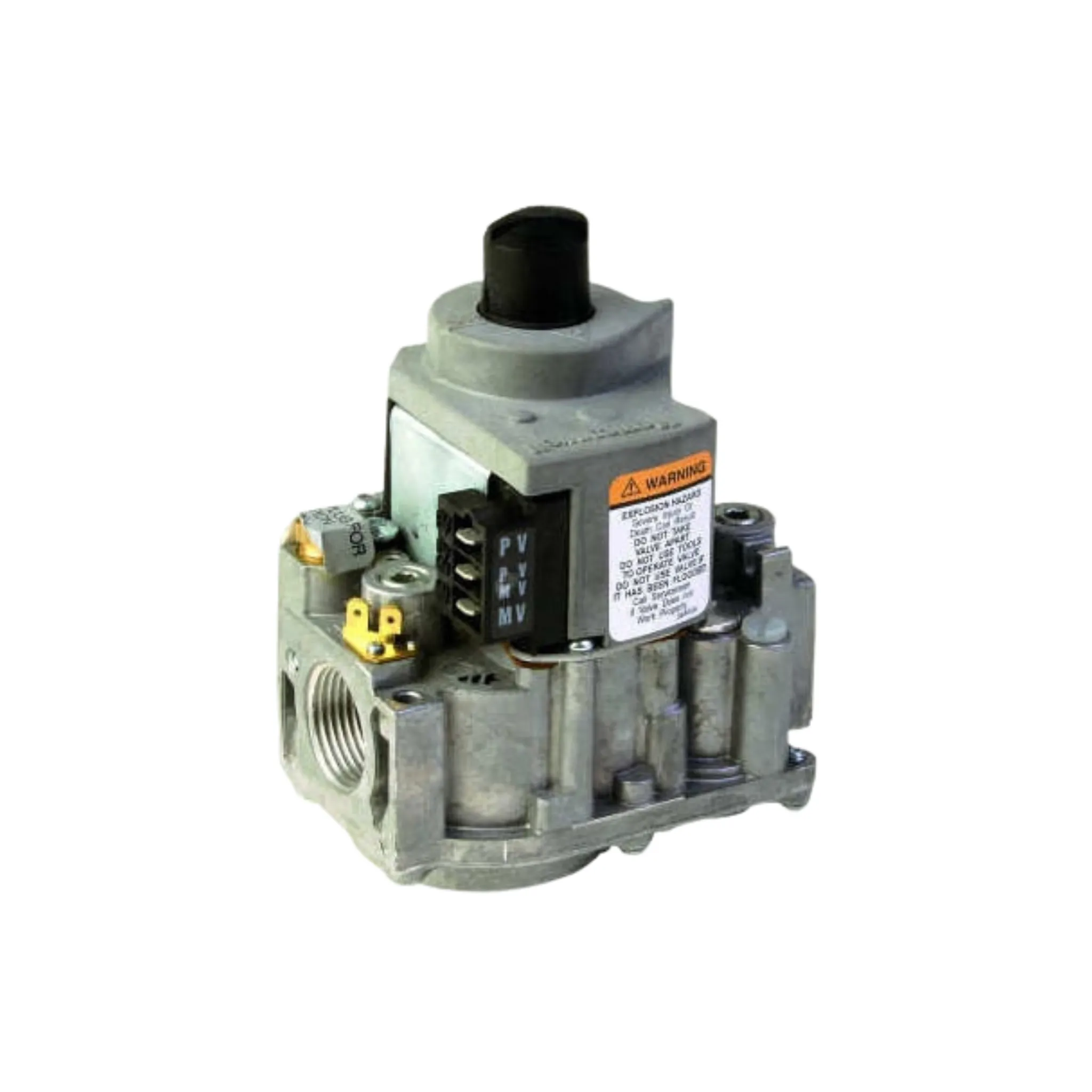

Gas Valve, Universal Electronic Ignition Combination, 3/4" x 3/4", 3.5" Water Column, Single Stage, Natural Gas, Standard Opening, 240000 Btu an Hour @ 1" Pressure Drop, 1/2 Psi Pressure Rating, 1/8" NPT Pressure Tapping with Plug, 24Vac, 1/4" Quick Connect Male Terminals, Includes Natural to LP Conversion Kit and Two 3/4" x 1/2" Reducer Bushing

Specifications:

Manufacturer: Honeywell
Manufacturer Part Number: VR8345M4302
Product Type: Gas Valve
Port Connection: 3/4" Compression x 3/4" Compression
Input Supply Rating: 24 VAC @ 50/60 Hz
Temperature Rating: -40 to 175 Degrees F
Pressure Rating: 1/2 PSI
Mounting Details: 0 to 90 Degree in any Direction from Upright Position of Gas Control Knob, Including Vertically
Media Handled: Gas
Pressure Regulator Setting: 3.5" WC
Pressure Tapping Size: 1/8" Threaded with Plug
Flow Capacity: 30 to 415 CFH
Electrical Connection: 1/4" Quick Connect Male Terminal
Dimensions: 4.8" x 5.9" x 3.25"
Weight: 1.99 lb.
Includes: (2) 3/4 Inch x 1/2 Inch Reducer Bushing, Natural to Liquid Propane Conversion Kit, Standard Opening, Manual Valve, (2) Automatic Operator, Pressure Regulator, Pilot Adjustment, Pilot Plug and Ignition Adapter, Low Voltage
