Current batch of PCBs is GREEN!

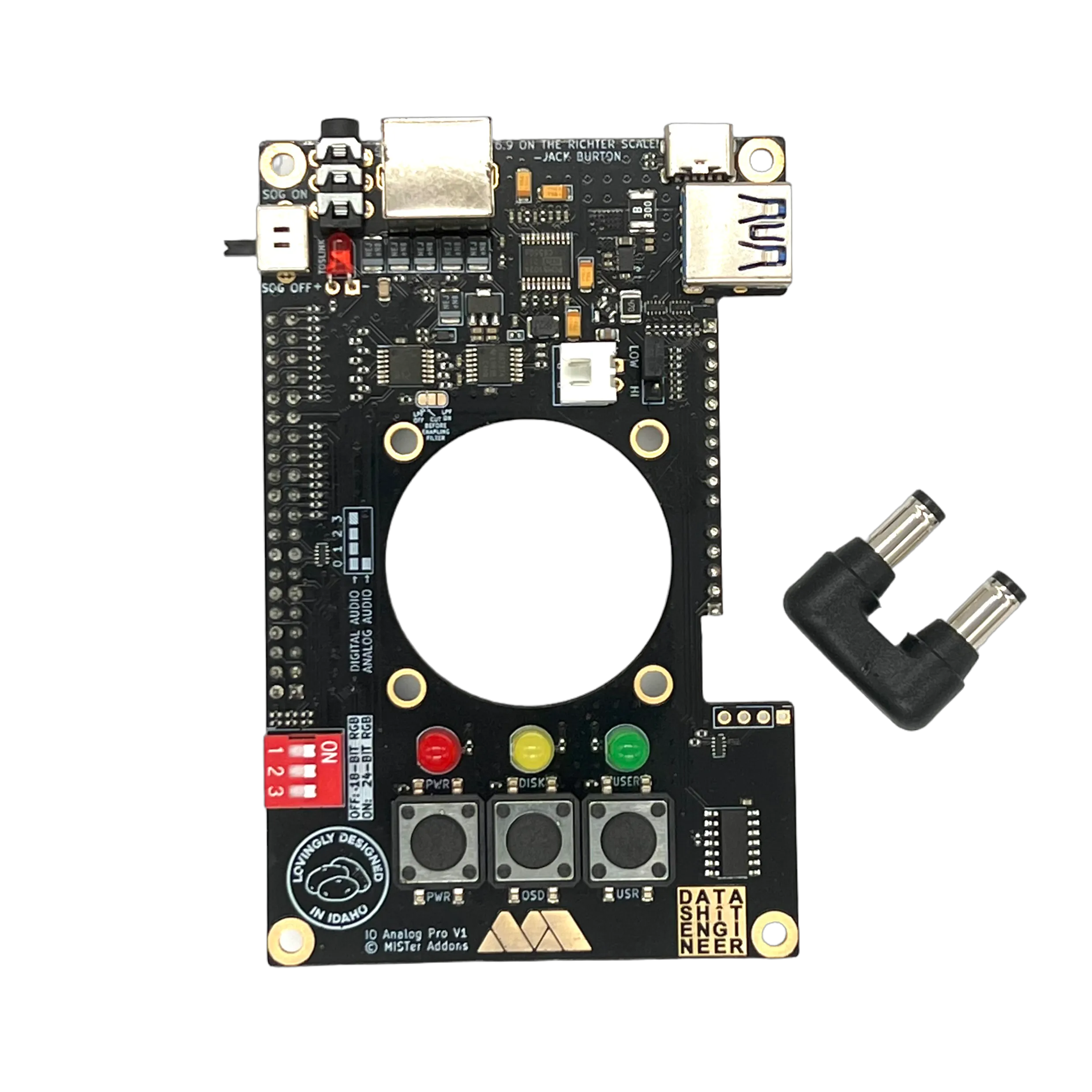

Unlock the analog potential of MiSTer FPGA with IO Analog Pro! Boasting accurate analog video, crystal clear analog audio, soft power toggle, and compatibility with the incredible . Existing case owners can purchase a

Features

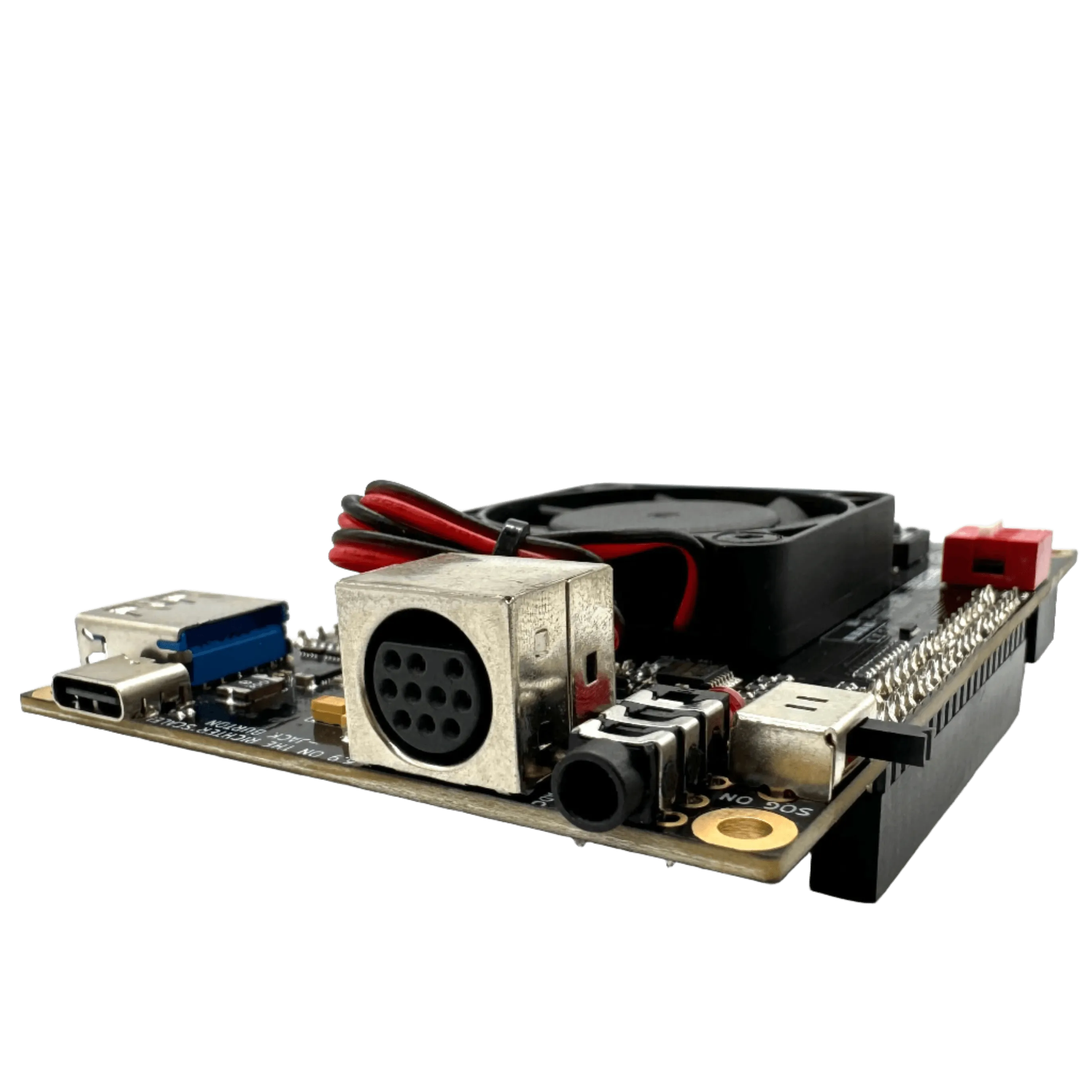

• Reference-quality analog video and audio via Sega Saturn AV port
• 99% accurate to specifications
• RGBs
• YPbPr with improved sync levels and correct 700mV Luma
• S-Video (native YC core support)
• Composite Video (native YC core support)
• DIPs to enable 24-bit video depth (Enabled by default)
• Hi-Fi analog audio
• Mini TOSLINK digital audio
• USB-C power (5V 2A minimum, 5V 3A limited). It works with USB-A and USB-C cable types. Check your power supply if you’re not sure. DC power jumper is used to route power to the USB hub from the DE10-nano.
• Reset button is now a power toggle button (experimental) that controls the USB C power input. Might need an extra tap every once in a while.
• User port for SNAC and mt32-pi
• Simultaneous analog and HDMI output
• Single SDRAM support
• Looking for dual SDRAM IO board, and don't mind giving up simultaneous HDMI and analog video? Check out my upcoming ! No cores currently require dual SDRAM. Jaguar (alpha), Saturn (beta), and Williams Y/Z unit arcade machines (upcoming) all need or benefit dual SDRAM.

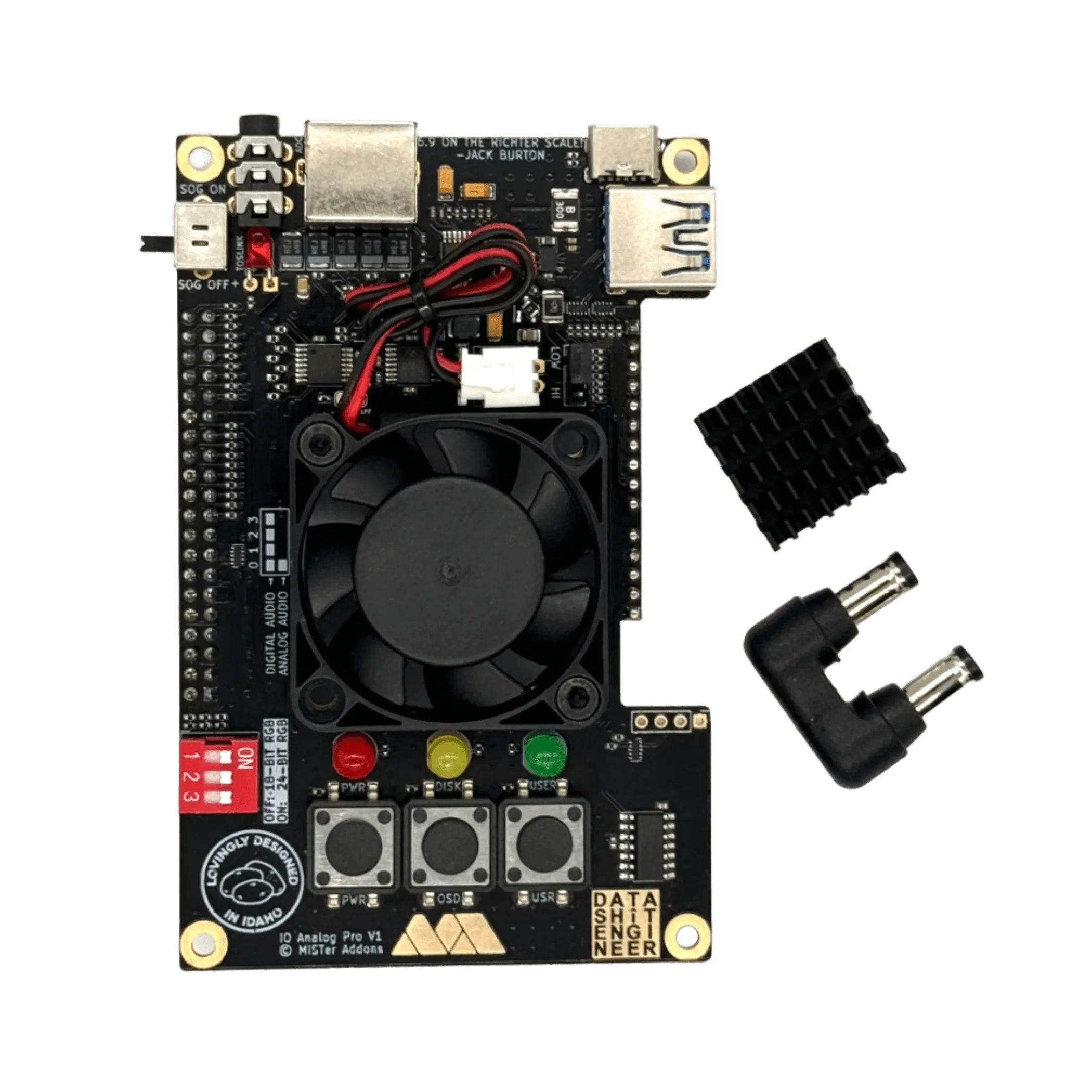

Included Accessories

• 40mm fan (optional)
• 20mm heatsink (optional)

Recommended Accessories

• (running low on some colors - consider black and a as an alternative until I can make more).

Configuration

Please refer to the MiSTer.ini section of the

Video measurements

Note: All non-MiSTer Addons measurements were taken by .
